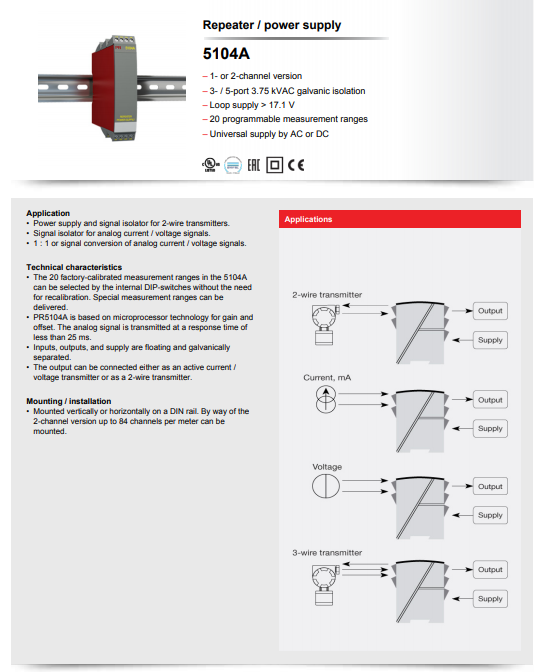

Literature

Application

• Power supply and signal isolator for 2-wire transmitters.
• Signal isolator for analog current / voltage signals.
• 1 : 1 or signal conversion of analog current / voltage signals.

Technical characteristics

• The 20 factory-calibrated measurement ranges in the 5104A can be selected by the internal DIP-switches without the need for recalibration. Special measurement ranges can be delivered.
• PR5104A is based on microprocessor technology for gain and offset. The analog signal is transmitted at a response time of less than 25 ms.
• Inputs, outputs, and supply are floating and galvanically separated.
• The output can be connected either as an active current / voltage transmitter or as a 2-wire transmitter.

• 1- or 2-channel version
• 3- / 5-port 3.75 kVAC galvanic isolation
• Loop supply > 17.1 V
• 20 programmable measurement ranges
• Universal supply by AC or DC

Mounting / installation

• Mounted vertically or horizontally on a DIN rail. By way of the 2-channel version up to 84 channels per meter can be mounted.
