5202A and 5202B - Pulse Isolator

Price:
Please Contact Brad at (203) 377-3525 for Customization Information and Pricing
SKU:
5202A/5202B ($228-$264)
Weight:
5.00 LBS

Product Description

5202A
5202B
2ac.png 2bc.png



5202A

Application

  • Pulse isolator for the supply of NAMUR sensors.
  • Pulse isolator for the detection of mechanical contacts.
  • One input signal can be used on two separate outputs.
  • A cable error alarm can be detected on a separate output.

Technical characteristics

  • PR5202A1 and 5202A2 have relays with change-over contacts or open NPN collectors.
  • PR5202A4 has 4 SPST relays, which are activated simultaneously two and two. Each relay can be programmed to the function N.O. or N.C.
  • Inputs, outputs and supply are floating and galvanically separated.
  • 5202 is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
    • 2 channels - 2 or 4 outputs
    • Dual output
    • 5-port 3.75 kVAC galvanic isolation
    • Cable error detection
    • Universal supply by AC or DC

Mounting / installation

  • Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.

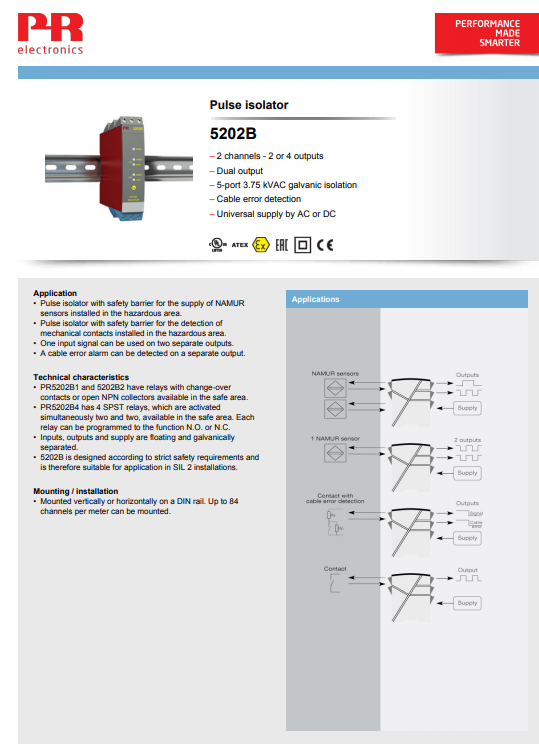

5202B



Application

  • Pulse isolator with safety barrier for the supply of NAMUR sensors installed in the hazardous area.
  • Pulse isolator with safety barrier for the detection of mechanical contacts installed in the hazardous area.
  • One input signal can be used on two separate outputs.
  • A cable error alarm can be detected on a separate output.

Technical characteristics

  • PR5202B1 and 5202B2 have relays with change-over contacts or open NPN collectors available in the safe area.
  • PR5202B4 has 4 SPST relays, which are activated simultaneously two and two, available in the safe area. Each relay can be programmed to the function N.O. or N.C.
  • Inputs, outputs and supply are floating and galvanically separated.
  • 5202B is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
    • 2 channels - 2 or 4 outputs
    • Dual output
    • 5-port 3.75 kVAC galvanic isolation
    • Cable error detection
    • Universal supply by AC or DC

Mounting / installation

  • Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.
