Flexim - Fluxus F501 Water and Waste Water Flow Meter
Price:
Please Contact Brad at (203) 377-3525 for Customization Information and Pricing
SKU:
US-5107SC.QDC
Brand:
Weight:
5.00 LBS
Product Description
| Literature |
 |

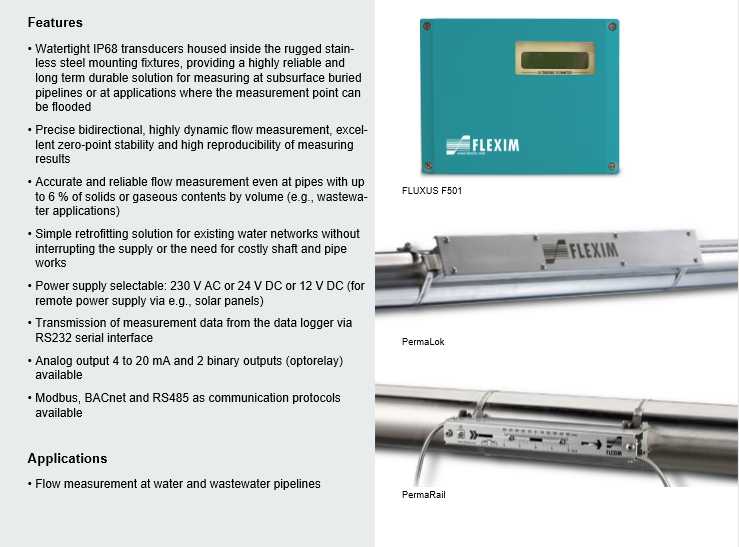

Advantages
- Precise bi-directional, highly dynamic flow measurement
- Water-tight transducers (IP67) for outside use
- Virtually maintenance free - permanent coupling pads instead of frequent regreasing
- Simple retrofitting in existing networks and systems - no need for pipe work
- User-friendly menu navigation - the firmware is specifically adapted to the needs of the water industry
- For nominal pipe diameters of 0.4 inches up to 7.5 feet - highly cost effective
- Superior pipeline leak detection - high repeatability of accurate measurement readings
- Digital Signal Processing ensuring stable and reliable results even under difficult measurement conditions
- High measuring accuracy, even at low flow velocities due to matched transducers
Technical Facts
| Measurement uncertainty (volumetric flow rate) |
±1.5 % v. MW ±0.03 ft/s |
| Repeatability | 0.25 % of reading ±0.03 ft/s |
| Flow velocity range | 0.03 to 82 ft/s |
| Ex zone transmitter | only safe area |
| Power supply | 230VAC, 12/24VDC |
| Available transducer | Shear Wave |
| for Ex zones | --- |
| for pipe sizes range | 0.39 inch to 94,5 inch |
| for temperature range | -40°F to +212°F |
| Outputs | 1x 4-20mA active 2x pulse/binary |
| Inputs | --- |
| Digital communication |
|
