MMX Series

Price:
$1,500.00
Brand:
Weight:
5.00 LBS
Shipping:
Calculated at checkout

Product Description

Dakota Product Literature Ultrasonic Thickness
MMX-6 MMX-7 MVX
mmx-6-cover.png mmx-7-cover.png mvx-cover.png



  • The MMX-6 is a simple to use hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and coatings and eliminate the thickness of the paint or coating. The MMX-6 uses a dual element style transducer. With the single press of a button, the MMX-6 can be switched between pit or flaw mode ( pulse-echo), and through paint/coatings mode (echo-echo) for maximum inspection efficiency. The MMX-6 is equipped with a bundle of features to make your job easier: Alarm mode, high speed scanning, and data send are the main features of the MMX-6. The MMX-6 comes as a complete kit, ready to use, and is backed by Dakota Ultrasonics 5 year limited warranty.

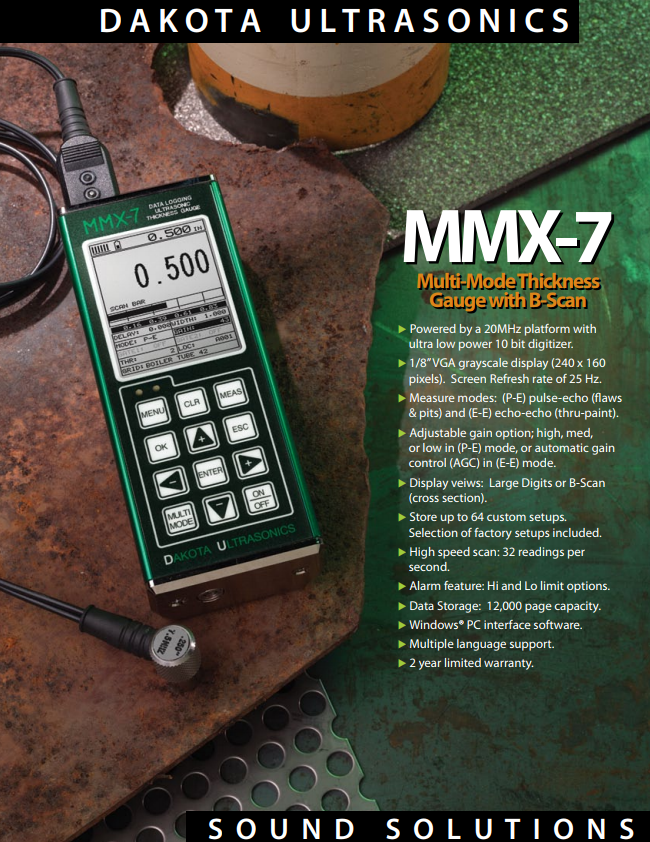

  • The MMX-7 has all features of the MX & MMX gauges with some additional features and advantages. Selectable Large Digits and B-Scan display options. An internal data logger that stores a total of 12,000 readings and waveforms, 64 user custom definable setups, selectable transducer table for improved linearity, thru paint mode with the single press of a button, multiple calibration and material selection options, and selectable low, medium or high gain options. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability! Our java based DakView PC or MAC OSX software makes this thing a complete kit and then some! 2-year limited warranty.

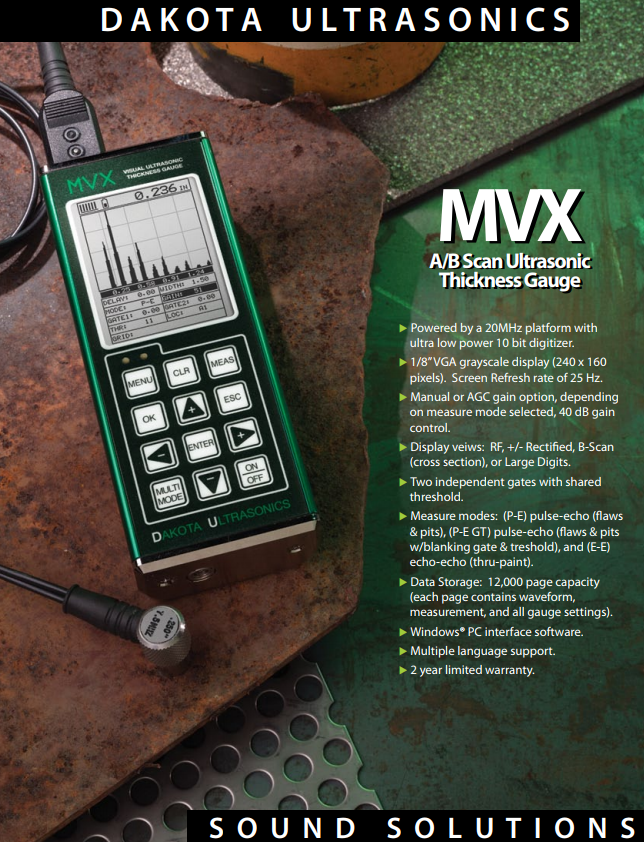

  • The MVX finishes the line of MX gauges with class. This thing is loaded with all of the features of the MX gauges and a lot more. Four selectable display options: RF, Rectified, B-Scan, and Large Digits. An internal data logger that stores a total of 12,000 readings and waveforms, 64 user custom definable setups, selectable transducer table for improved linearity, thru paint mode with the single press of a button, multiple calibration and material selection options, and auto waveform find – just to mention a few! Equipped with a single element flaw prove-up mode for basic angle beam inspections. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability! Our DakView java-based PC or MAC OSX software makes this thing a complete kit, and then some!
