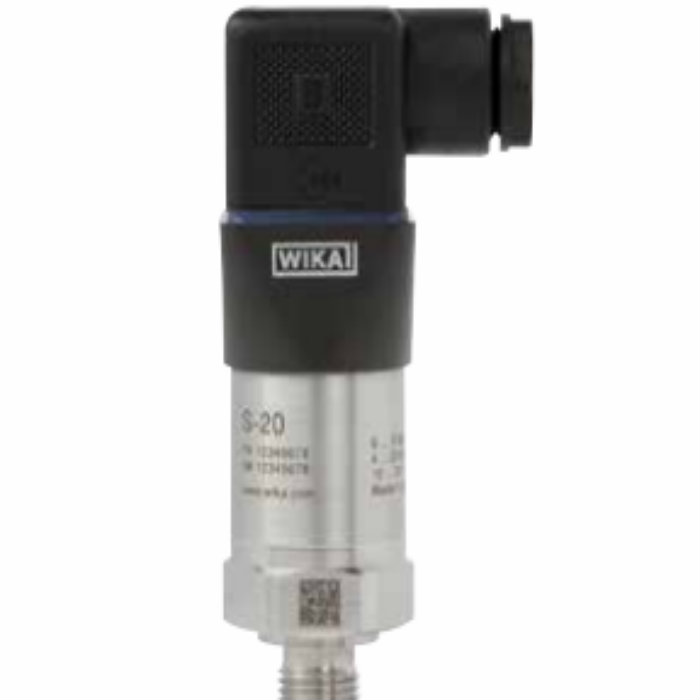

Pressure transmitter Model S-20
for general applications, superior
non-linearity: 0.25% BFSL
Pressure range: 0...15 psig
Process Connection: 1/4"NPT
permitted media temperature: -30...+100°C
Signal output: 4...20 mA, 2-wire
Power supply: DC 8...35 V
Electrical connection: angular connector DIN 175301-803 A
tailoring electrical connection: mating connector included
: Z
pin assignment el. connection: U+=1, U-=2
Approvals: UL / CSA / GOST
Overpressure safety: 3 times
Test protocol: with test protocol

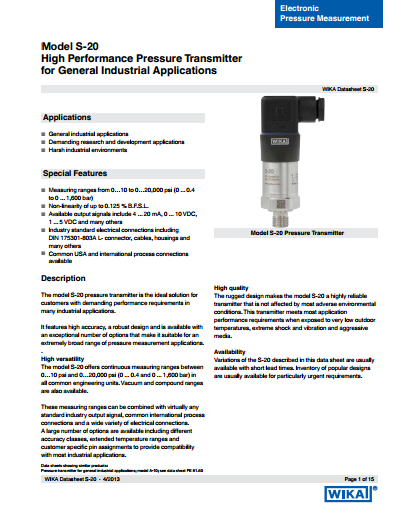

Specifications: according to WIKA data sheet PE 81.61
